The ability to solve word problems ranks high on any math teacher’s list of goals. How can I teach my students to solve math problems? I must help them develop the ability to translate “real world” situations into mathematical language.

In two previous posts, I introduced the problem-solving tools *algebra *and *bar diagrams*. These tools help our students organize the information in a word problem and translate it into a mathematical calculation.

## Working Math Problems with Poor Richard

This time I will demonstrate these problem-solving tools in action with a series of 3rd-grade problems based on the Singapore Primary Math series, level 3A. For your reading pleasure, I have translated the problems into the universe of a well-written biography of Ben Franklin, Poor Richard by James Daugherty.

## Update

I’ve put the word problems from my elementary problem solving series into printable worksheets:

## Milk Street — Boston, 1706

Ben helped his father make 650 tallow candles. After selling some, they had 39 candles left. How many candles did they sell?

**Using algebra**

This is much like a 2nd-grade problem, but with larger numbers. The main difficulty is to convert the common-sense equation that represents the story into its fact-family partner. If your student doesn’t recognize the logic of that switch, review how fact families work by using smaller numbers: 5 = 9 – 4 means also that 4 = 9 – 5.

*Made *= 650

*Sold *= ?

*Leftover *= 39

*Leftover* = *Made *– *Sold *

Which means also that:

*Sold* = *Made *– *Leftover *

*Sold *= 650 – 39 = 611 candles.

**Using a bar diagram**

In the bar diagram, the relationship is clear. This is a simple, one-step problem.

650 – 39 = 611 candles sold.

## Printer’s Ink — 1718

Ben sold 830 newspapers. His brother James sold 177 fewer newspapers than Ben.

(a) How many newspapers did James sell?

(b) How many newspapers did they sell altogether?

**Using algebra**

In early 2-step problems, the textbook asks for each step explicitly. Later, the student will be expected to figure out which intermediate steps are needed to find the answer. For this problem, the main danger is that your student will insert a mental period after “James sold 177” and not finish reading the sentence.

We will use each man’s name to represent the number of newspapers he sold.

*Ben *= 830

*James *= *Ben *– 177 = 830 – 177 = 653

*Total *= *Ben *+ *James *= 830 + 653 = 1483 newspapers.

**Using a bar diagram**

This is a comparison problem. We need a bar for the newspapers Ben sold and a bar for the papers sold by James. To indicate that we need to find the total, we put a bracket to the right of our drawing, encompassing both bars.

830 – 177 = 653 newspapers James sold.

830 + 653 = 1483 newspapers sold altogether.

## The Water American — London, 1724

Ben loved to visit the London book shops. In one small shop, there were 6 shelves of books. Each shelf held the same number of books. There were 30 books altogether. How many books were there on each shelf?

**Using algebra**

Words like “each” or “every” or “average” usually signal a *this per that* (or *rate*) problem. *This per that* problems require multiplication or division, and your student must be able to use logic to figure out which is needed. Since you are taking the total number of books and sharing them out among the shelves, it is division.

*Shelves *= 6

*Books *= 30

*Books per shelf *= 30 ÷ 6 = 5

**Using a bar diagram**

The basic “part + part = whole” diagram showed the inverse relationship between addition and subtraction. Now students can use the “(number of units) x (size of units) = total” diagram to represent both multiplication and division problems, because multiplication and division are also inverse operations. Remember that when the units are all the same size, we only need to write a number in the first one.

6 units = 30

1 unit = 30 ÷ 6 = 5 books on each shelf.

## A Shop of Your Own — Philadelphia, 1726

Ben and his friends made a club called “The Junto” to read books and discuss ideas. Ben read 7 science books. He read 5 times as many history books as science books. How many more history books than science books did he read?

**Using algebra**

Notice that the math book is no longer asking a question for each step in the problem. Students will tend to do one calculation and then move on to the next problem. Remind them to check that they have fully answered the question before going on.

*Science *= 7

*History *= 5 x *Science *= 5 x 7 = 35

*How many more* = *History *– *Science *= 35 – 7 = 28 books.

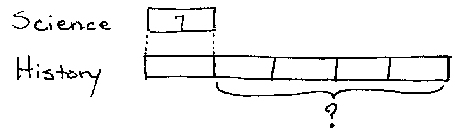

**Using a bar diagram**

Another comparison, with same-size units of books. We do not need the extra step of calculating how many history books Ben read. The bar diagram contains enough information to lead us directly to the answer.

1 unit = 7

4 units = 4 x 7 = 28 books.

## Industry and Frugality — 1732

Ben collected donations for many worthy organizations. He had 2467 pounds in a bank account to start a new hospital. A friend gave him another 133 pounds. How much more money must Ben collect if he needs 3000 pounds for the hospital?

**Using algebra**

Like the candles problem above, this problem requires a knowledge of how equations work — in this case, the inverse relationship between addition and subtraction. You may need to remind your students that 7 = 5 + 2 means also that 7 – 5 = 2.

Here we introduce our first algebra *variable*: I chose a question mark to stand in for our unknown value. Students may use an *x* or *m* or any symbol they like.

*Bank *= 2467

*Friend *= 133

*Total needed* = 3000

*How much more money needed* = ?

*Total *= *Bank *+ *Friend *+ ?

3000 = 2467 + 133 + ?

3000 = 2600 + ?

? = 3000 – 2600 = 400 pounds still needed

**Using a bar diagram**

The bar diagram makes the inverse relationship easy to see.

3000 – (2467 + 133) = 3000 – 2600 = 400 pounds needed.

## An American in Paris — 1776-1785

While in France to negotiate a treaty, Ben went to a fancy party. There were 1930 women at the party. There were 859 fewer men than women. How many people were at the party altogether?

**Using algebra**

This is exactly like the newspaper problem earlier, but with bigger numbers. Again, the main danger is that your student will read the sentence about men as “There were 859 (fewer) men” and think, “Well, of course 859 is fewer!” but not notice the rest of the phrase.

*Women *= 1930

*Men *= *Women *– 859 = 1930 – 859 = 1071

*Total *= *Women *+ *Men *= 1930 + 1071 = 3001 people.

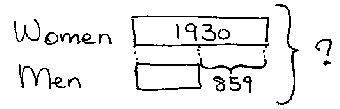

**Using a bar diagram**

Again, there should be a bracket to the right, showing that we need to find the sum of the two bars.

(2 x 1930) – 859 = 3860 – 859 = 3001 people.

There are often more ways to find an answer than you might expect. Here, I have shown an alternate calculation. Although I imagine most 3rd-grade students would do the calculation exactly as is done in the algebra section above, the bar diagram reveals another way to look at the problem, if we wish. We could first find out what the total would be IF there had been the same number of men as women, and then subtract the extra men (the ones who weren’t really there). Sometimes the less obvious method will lead to a much easier calculation, as it does here: 860 – 859 = 1.

## Which Approach Is Best for Your Student?

As I mentioned in the 2nd-grade article, the algebra approach required me to recognize on my own which operation was needed to solve the problem. Algebra offers an efficient way to write down my reasoning, which usually lets me move quickly from problem to solution. Students with strong reading and reasoning skills will appreciate this efficiency, but weaker students may have trouble deciding whether to add or subtract, multiply or divide. Even strong students may have difficulty when it becomes necessary to rearrange an equation or when a story requires several steps.

Bar diagrams often take up more space and require more pencil-to-the-paper work from the student in drawing them out. But in most cases, the bar diagrams offer more help for students who struggle with the question, “What do I do?” Diagrams put the inverse relationships on display, enabling the student to decide which arithmetical operation to use. On occasion, a bar diagram will surprise me by offering a more efficient solution than the algebra approach.

One clear advantage of bar diagrams, in my opinion, is how well they lead to understanding ratios. The problem with the science and history books is a good example. Students will meet many problems like this in Singapore math — one thing is some number times as many as another thing. The bar diagram shows this relationship: the bar really is 5 times as big.

The algebra approach leaves the relationship hidden in the abstraction of the numbers: 5 x 7 = 35, but what does that really mean? Problems like this are going to grow more challenging as students progress, until they become the dreaded ratios and proportions of pre-algebra. These topics are notoriously difficult for students [JSTOR access required, or try this article instead], but I believe the bar diagrams provide a much better foundation for understanding than any other method I have seen.

## Teaching Tips

When using algebra with young children, keep the abstraction to a minimum. Do not introduce generic variables like *x* and *y*. Instead, use significant words from the story, like the names of the characters or their initials, or use words like *Total *and *Leftover *that name the relationship between quantities. And when you write or read an equation, emphasize the connection between the math and the story by *saying* the whole word, even if all you write is the initial.

Bar diagrams are normally drawn as rectangles, like blocks or Cuisenaire rods, and numbers or words may be written inside to label them. Brackets are used to group the bars together or to indicate a specific section of a bar.

When introducing bar diagrams, help your students recognize the meaning of the bar by saying, “Let’s imagine all the candles/newspapers/books set out in a row…” If your student has trouble figuring out where the numbers go in the diagram, you might ask, “Which is the big amount, the whole thing? What are the parts it is made of? Are we comparing one thing to another?”

## For Tutoring or Homeschooling Situations

When I teach my students to draw bar diagrams, I do it apart from their daily homework. My students are allowed to work their daily homework by whatever method they choose — including doing it all in their heads and just writing an answer — as long as they can explain the logic of their solution. But in our story problem workbook, they have to draw the bars.

As a compensation for the extra pencil work of drawing, they do not have to actually calculate the answer. Once they show me how the bars are set up and tell me what would have to be done to solve it, they are done with that problem. They think they are pulling a fast one on me, because they aren’t doing the multiplication or subtraction or whatever, but I want them to focus on reasoning through to a solution. I want them to learn how the bar diagram tool works *before* they get to the really tough problems where they need it.

To get more practice creating bar diagrams, your students may enjoy these online tutorials:

- Thinking Blocks Addition and Subtraction Word Problems
- Thinking Blocks Multiplication and Division Word Problems

### Update: My New Book

You can help prevent math anxiety by giving your children the mental tools they need to conquer the toughest story problems.

Read expanded explanations of the Ben Franklin word problems—and many more!—in *Word Problems from Literature: An Introduction to Bar Model Diagrams.* Now available at all your favorite online bookstores.

And there’s a paperback *Student Workbook,* too.

Want to help your kids learn math? Claim your free 24-page problem-solving booklet, and sign up to hear about new books, revisions, and sales or other promotions.

Thanks, Denise, for the great post and the great links to the Thinking Blocks pages.

I tried the Thinking Blocks for the multiplication and division, choosing the hardest level. I think it was called “Advanced”. The first problem in the practice set had a glitch! ( Why do I find the faults in a presentation so quickly!)

I pretended I needed help. Yikes –the help video was for a different problem. Now that would really upset a struggling student is sure he/she can’t do word problems!

Just a caveat before teachers turn their students to work math problems at this site — work the series first, including clicking on the help buttons.

In general, this is a good audio/visual for explaining how the bar diagram method works for solving word problems. I hope more Singapore users find it, especially those who jump into Singapore after level 3 like we did.

I am working on a site. I am aiming to create/integrate over 1000 video tutorias by the end of 2007. Take a look: Algebra Help Online Video Tutorials

Hello Di,

Could you please describe the glitch to me that you found in the Multiplication and Division program? I would like the opportunity to find and repair the error.

The video help in the independent section provides word problems that are very similar to the problems students are working on. Think of it as looking back at the model provided at the beginning of a chapter in a textbook. The models are never identical to the practice problems but close enough to be helpful.

Thank you very much for your comments.

Colleen King

Publisher, ThinkingBlocks.com

This is very helpful, thank you for this concise and detailed post. Blessings!

Excellent and very complete explanation

This is very helpful and really interesting for our students. I am a Filipino teacher and I think, this will make my subject more interesting. Keep it up and may the Lord God bless your kind heart for having this site.

We are trying to solve a third grade problem using bar merhod.

“72 is subtracted from three times a number. This number equals three times the difference. What is the number?”

How do you solve this?

I can see why you are confused — this problem is awkwardly worded. “The difference” is what you have left, after you subtract 72. So you start with three times some number:

[——-][——-][——-]

Then you subtract 72, leaving you with a little piece:

[-][———-72———]

And the original mystery number is three times the little piece:

[——-]

[-][-][-]

Try dividing the first diagram (the three bars) into smaller units, each 1/3 of the original size. Compare those units to the second diagram, with the number 72, and that should show you how to get your answer. But remember: They want you to tell them the size of the original mystery number, not the little piece!

Some great insight into methods to help younger pupils make sense of these worded questions. But urgh, some of those questions are ridiculous!

I’ve recently written on this: http://wp.me/p2z9Lp-9R

I’m not sure what you mean by “ridiculous”, Stephen, but perhaps you mean that these problems–like most word problems in math books–are not realistic, not something anyone would calculate in real life. But realism is not the goal of math word problems.

Especially in the elementary grades, word problems are mental manipulatives. Their goal is to make children think about the relationships between mathematical ideas in a way that abstract lessons and numbers-only calculations cannot. In these problems, students must grapple with such concepts as inverse operations and proportional reasoning.

Are you familiar with Andre Toom’s Word Problems in Russia and America? Highly recommended reading for all math teacher!
