A New Graph-It Puzzle

Since I’ve been posting new Alexandria Jones stories this week (beginning here), I’ve gone back and re-read the old Christmas posts. I noticed that the original Graph-It Game included a religious design, but nothing for those who don’t celebrate Christmas.

So I updated the post with a new, non-religious puzzle. Here it is, if you want to play…

Graph-It Game Design

For this design, you will need graph paper with coordinates from −8 to +8 on both the x- and y-axis. Connect the points in each line. Stop at the periods, and then start a new line at the next point.

(-8,8) – (-8,0) – (0,8) – (-8,8) – (-4,4) – (0,4) – (0,8) – (8,8) – (4,4) – (0,8).

(8,8) – (8,0) – (4,0) – (4,-4) – (8,0) – (8,-8) – (0,-8) – (4,-4) – (0,-4) – (0,-8) – (-8,0) – (-8, -8) – (0,-8).

(-8,-8) – (4,4) – (0,4) – (4,0) – (4,4) – (8,0).

(8,-8) – (-4,4) – (-4,-4) – (0,-4) – (-4,0) – (-8,0).

(0,-2) – (0,-4) – (4,0) – (2,0) – (2,-2) – (-2,-2) – (-2,2) – (2,2) – (2,0) – (1,1) – (1,0) – (2,0) – (0,-2) – (-2,0) – (0,2) – (1,1) – (-1,1) – (-1,-1) – (1,-1) – (1,0) – (-4,0) – (0,4) – (0,-1) – (-1,0) – (0,1) – (1,0) – (0,-1) – (0,-2).

Color in your design and hang it up for the whole family to enjoy!

Now Make Your Own

Of course, the fun of the Graph-It Game is to make up your own graphing puzzle. Can you create a coordinate design for your friends to draw?

Want More?

You can see all the Alexandria Jones Christmas posts at a glance here:

CREDITS: “Love Christmas Lights” photo by Kristen Brasil via Flickr (CC BY 2.0).

The Mysterious Block Puzzle

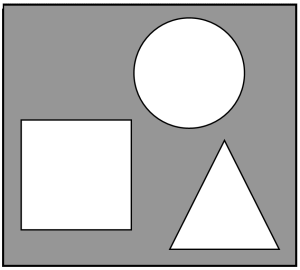

3-way-block-puzzleFor toddler Renée’s Christmas gift, Alex and Leon crafted a puzzle set of wooden blocks.

First, they made a sturdy box with circle, square, and triangle shapes cut in the lid.

To make the blocks large and baby-safe, Alex and Leon bought a 4-foot 2×2 board. Then they asked Uncle Will to help them create a set of special blocks to fit through the holes.

Each block was round and square and triangular, so it could fit exactly through any of the three holes.

How can that be?

To Be Continued…

Read all the posts from the December 2000/January 2001 issue of my Mathematical Adventures of Alexandria Jones newsletter.

CREDITS: “Christmas Tree Closeup” photo by Zechariah Judy via Flickr (CC BY 2.0).

A Polyhedra Construction Kit

To make a Christmas gift for her brother Leon, Alex asked all her friends to save empty cereal boxes. She collected about a dozen boxes.

She cut the boxes open, which gave her several big sheets of thin cardboard.

Then she carefully traced the templates for a regular triangle, square, pentagon, and hexagon, as shown below.


Click here to download the polygon templates

She drew the dark outline of each polygon with a ballpoint pen, pressing hard to score the cardboard so the tabs would bend easily.

She cut out shapes until her fingers felt bruised: 20 each of the pentagon and hexagon, 40 each of the triangle and square.

Alex bought a bag of small rubber bands for holding the tabs together. Each rubber band can hold two tabs, forming an edge of the polyhedron. So, for instance, it takes six squares and twelve rubber bands to make a cube.

Finally, she stuffed the whole kit in a plastic zipper bag, along with the following instructions.

Polyhedra Have “Many Faces”

Poly means many, and hedron means face, so a polyhedron is a 3-D shape with many faces.

The plural of polyhedron is polyhedra, thanks to the ancient Greeks, who didn’t know that the proper way to make a plural was to use the letter s.

Each corner of a polyhedron is called a vertex, and to make it more confusing, the plural of vertex is vertices.

Regular Polyhedra

Regular polyhedra have exactly the same faces and corners all around. If one side is a square, then all the sides will be squares. And if three squares meet to make one vertex, then all the other vertices will be made of three squares, just like that first one.

There are only five possible regular polyhedra. Can you figure out why?

Here are the five regular polyhedra, also called the Platonic solids. Try to build each of them with your construction kit.

Tetrahedron: three equilateral triangles meeting at each vertex.

Hexahedron: three squares meeting at each vertex. Do you know its common name?

Octahedron: four triangles at each vertex.

Icosahedron: five triangles at each vertex.

Dodecahedron: three pentagons per vertex.

You can find pictures of these online, but it’s more challenging to build them without peeking at the finished product. Just repeat the vertex pattern at every corner until the polygons connect together to make a complete 3-D shape.

Semi-Regular Polyhedra

Semi-regular polyhedra have each face a regular polygon, although not all the same. Each corner is still the same all around. These are often called the Archimedean polyhedra.

For example, on the cuboctahedron, every vertex consists of a square-triangle-square-triangle combination.

Here are a few semi-regular polyhedra you might try to build, described by the faces in the order they meet at each corner:

Icosidodecahedron: triangle, pentagon, triangle, pentagon.

Truncated octahedron: square, hexagon, hexagon.

Truncated icosahedron: pentagon, hexagon, hexagon. Where have you seen this?

Rhombicuboctahedron: triangle, square, square, square.

Rhombicosidodecahedron: triangle, square, pentagon, square.

Now, make up some original polyhedra of your own. What will you name them?

To Be Continued…

Read all the posts from the December 2000/January 2001 issue of my Mathematical Adventures of Alexandria Jones newsletter.

CREDITS: “50/52 Weeks of Teddy – Merry Christmas” photo by Austin Kirk via Flickr (CC BY 2.0).

How to Make a Flexagon Christmas Card

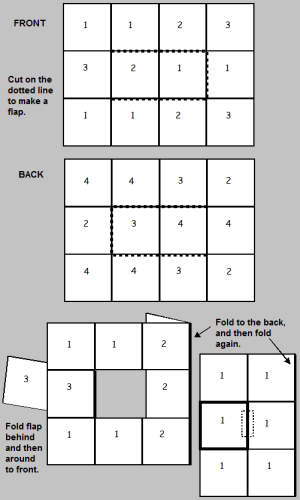

tetra-tetraflexagonHere’s how Alex created tetra-tetraflexagon Christmas cards to send to her friends:

1. Buy a pack of heavy paper at the office supply store. Regular construction paper tears too easily.

2. Measure and divide the paper into fourths one direction and thirds the other way. Fold each line backward and forward a few times.

3. Number the front and back of the paper in pencil, lightly, as shown. Then carefully cut a center flap along the dotted lines.

4. Fold the paper along the dark lines as shown, so the center flap sticks out from underneath and the right-hand column shows all 2’s.

5. Fold the flap the rest of the way around to the front and fold the right-hand column under again. (Shown as dark lines on the diagram.) This makes the front of the flexagon show 1’s in every square.

6. Carefully, tape the flap to its neighbor on the folded column. Don’t let the tape stick to any but these two squares.

7. Gently erase your pencil marks.

Find All the Faces

A tetra-tetraflexagon has four faces: front, back, and two hidden. It is shaped like a tetragon — better known as a rectangle.

Here’s how to flex your tetra-tetraflexagon card:

  • Face 1 is easy to find. It’s on top when you make the card.
  • Turn the card over to find Face 2.
  • Face 3 is hidden behind Face 2. Fold your flexagon card in half (vertically) so that Face 1 disappears. Unfold Face 2 at the middle, like opening a book. Face 3 should appear like magic.
  • Face 4 is hidden behind Face 3. Fold the card (vertically) to hide Face 2, then open the middle of Face 3. Face 2 vanishes, and Face 4 is finally revealed.

When Faces 2 and 3 are folded to the back, you will notice that any pictures you drew on them will look scrambled. What happened?

Add Your Designs

Alex wrote a holiday greeting on Face 1. Then she drew Christmas pictures on the other three faces of her card.

To Be Continued…

Read all the posts from the December 2000/January 2001 issue of my Mathematical Adventures of Alexandria Jones newsletter.

CREDITS: “Happy Holidays” photo by Mike Brand via Flickr (CC BY 2.0). Video by Shaireen Selamat of DynamicEducator.com.

Alexandria Jones and the Magic Christmas Cards

The Jones family sat around the dining table performing a traditional holiday ritual: the Christmas card assembly line.

First, Dr. Fibonacci Jones (the world-famous mathematical archaeologist) signed for himself and his wife. He handed the card to Alex, who signed for herself and baby Renée. Then Alex’s younger brother Leon added his own flourish. Finally, Mrs. Jones wrote a personal note on the cards going to immediate family and close friends.

One-year-old Renée sat in her high chair, chewing the corners of an extra card.

Alex Poses a Problem

Alex dropped her pen and shook out her tired fingers.

“I’m stumped,” she said. “I’d like to send a special Christmas card to some of my friends from camp last summer. But I can’t think of anything that seems good enough.”

Leon leaned his chair back in thought.

Then he snapped his fingers. “I’ve got it! We’ll throw a handful of sand in each of their envelopes. You know, to make them remember all the fun you guys had digging up old stuff.”

Alex humphed. “How would you like to get sand in your Christmas present?” she asked. “Besides, it wasn’t stuff. It was artifacts.”

“You should not make such a display of your ignorance, young man,” Dr. Jones said. “Stuff, indeed!”

Mrs. Jones put her hand to her forehead and sighed dramatically. Then she turned to Alex. “Have you considered doing a jigsaw puzzle card? They sell them at the hobby store.”

“I’ve tried those before,” Alex said, “but the ones I had always warped. The puzzles didn’t go back together very well.”

Dad Gets an Idea

Dr. Jones got an out-of-focus, “I’m thinking” look in his eyes. He stood up, tapped his chin with his pen, and walked away. He almost ran into the wall, but he caught himself. Shaking his head, he disappeared into his study.

Mrs. Jones put down her pen and picked up Renée.

“Why don’t you two address those envelopes while we wait for your dad’s inspiration to reveal itself? I need to put a little one down to S-L-E-E-P.”

Alex laughed. “If you keep that up, Renée will learn to spell before she’s out of diapers!”

Leon thumbed the stack of envelopes and groaned. “C’mon, sis. Back to work!”

Before long, Mrs. Jones came back and chased the kids away from the table. “I’ll finish this,” she said.

Unfolding the Magic

Alex and Leon ran to the study. They found Dr. Jones at his desk, playing with a piece of paper.

“Ah, there you are,” he said. “Here, Alex. What do you think?”

“Well,” she said, “it looks like a regular piece of paper that’s been folded over on itself.”

Dr. Jones nodded. “Now you know a sheet of paper has two faces—that is, it has a front and a back.”

Leon reached for the paper and flipped it over. “Is that why you put red stripes on one side and blue stripes on the other?”

“Observe,” Dr. Jones said.

He took the piece of paper and folded it in half. Then he unfolded it and handed it to Alex.

“Hey, how’d you do that?” she asked. “Now there are blue polka-dots on this side.”

“Cool! It’s magic,” Leon said.

“It is called a tetra-tetraflexagon,” Dr. Jones said, “and it has one more hidden face. Can you find it?”

Alex folded the paper this way and that. Then she held it up in triumph.

“Look, red dots—I did it!”

She gave her dad a tremendous hug. “Thanks, Dad! I’ll make magic flexagons. They’ll be the best Christmas cards ever!”

To Be Continued…

Read all the posts from the December 2000/January 2001 issue of my Mathematical Adventures of Alexandria Jones newsletter.

CREDITS: “Christmas Window” photo by slgckgc via Flickr (CC BY 2.0). Video by Shaireen Selamat of DynamicEducator.com.

Christmas with Alexandria Jones

Alexandria JonesAlexandria Jones and her family are fictional characters from my old Mathematical Adventures newsletter. Their stories appear sporadically as I find time to transcribe them from the back-issues. You can find them all on this blog page.

Here are all the Alexandria Jones stories Christmas stories, with activity and craft ideas…

Alexandria Jones and the Christmas Present Quandary

Alex designs tessellation wrapping paper, hunts for the perfect Christmas tree, and comes up with a lively present for her brother. We meet the rest of Alex’s family — her father was introduced in an earlier issue — along with historical figures Maria Agnesi and Leonhard Euler, and we take a brief glance at mathematics from China.

Alexandria Jones and the Christmas Gifts

Most of this issue focuses on other topics — but the Jones family has a new baby, so Alex makes two gifts.

And New This Year: Alexandria Jones and the Magic Christmas Cards

Dr. Jones suggests a way to make the “best Christmas cards ever” (according to Alex), and the Jones children create geometric gifts to celebrate the holiday.

Alexandria Jones and the Strange Attractor

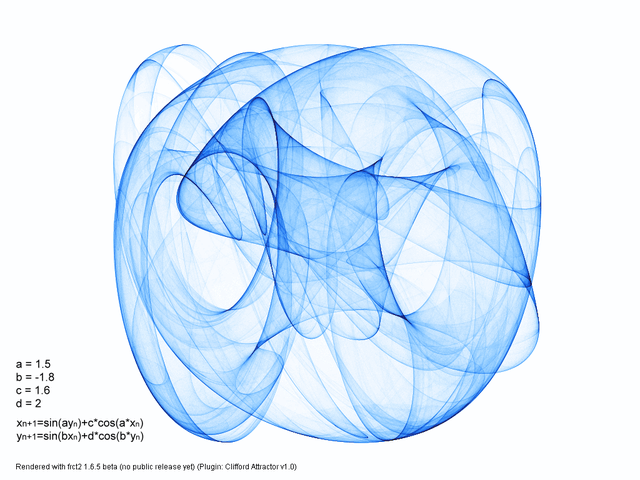

[Feature photo above: Clifford Attractor by Yami89 (public domain) via Wikimedia Commons.]

Alexandria Jones collapsed onto the couch with a dramatic sigh. Her father, the world-famous archaeologist Dr. Fibonacci Jones, glanced up from his newspaper and rolled his eyes.

“I don’t even want to hear about it,” he said.

Alex’s brother Leonhard was playing on the floor, making faces at the baby. He looked up at Alex and grinned.

“I’ll take the bait,” he said. “What happened?”

“Mom called my bedroom a Strange Attractor.”

“Oh? What does it attract?”

“I don’t know. Mostly books and model horses. But what’s so strange about that?”

The Mathematics of Chaos

Animation of a double compound pendulum showing chaotic behaviour.

Dr. Jones laughed and put down his paper. “Strange attractor is a technical term from the branch of mathematics called dynamical systems analysis — often called chaos theory.”

“So my bedroom is a math problem?”

“No. I think Mom meant your bedroom was chaos.”

“Oh.” Alex looked like she might pout, then she shrugged. “I guess she’s right, at that. So what is a strange attractor, really?”

“Well, when scientists first drew graphs of classical, non-chaotic systems — like a planet’s orbit or the flight of a football — it was surprising how often they got an ellipse or parabola or some similar curve,” Dr. Jones explained. “For some reason, nature seemed to be attracted to the shapes of classical geometry.”

Click here to continue reading.

Babymath: Story Problem Challenge III

<a href="http://www.flickr.com/photos/goetter/2352128932/"Photo by Raphael Goetter via Flickr

Alex and Leon enjoyed their baby sister, but they were amazed at how much work taking care of a baby could be. One particularly colicky night, everyone in the family took turns holding the baby, rocking the baby, patting her back, and walking her around before she finally succumbed to sleep.

Then Alex collapsed on the couch, and Leon sank into the recliner. They teased each other with these story problems.

Continue reading Babymath: Story Problem Challenge III

Graph-It Game

[Photo by Scott Schram via Flickr.]

For Leon’s Christmas gift, Alex made the Graph-It game. She wrapped a pad of graph paper and wrote up the instructions:

To play Graph-It, one person designs a picture made by connecting points on a coordinate graph. He reads the points to the other player, who tries to reproduce the picture.

Continue reading Graph-It Game

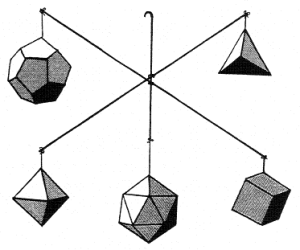

Renée’s Platonic Mobile

Alexandria Jones struggled to think of a Christmas gift that a one-month-old baby could enjoy, but finally she got an idea.

She cut empty cereal boxes to make regular polygons: 6 squares, 12 regular pentagons, and 32 equilateral triangles. Using small pieces of masking tape, she carefully formed the five Platonic solids. Then she mixed flour and water into a runny paste. She tore an old newspaper into small strips and soaked them in the paste. She covered each solid with a thin layer of paper.

Continue reading Renée’s Platonic Mobile
