The Pythagorean Proof

[In the last episode, Alexandria Jones received a letter from archaeologist Sofia Theano, asking for help with a Pythagorean puzzle.]

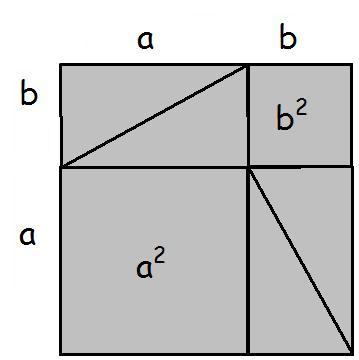

Dr. Jones suggested that Alex mark the lengths on the side of each square. She called the length of the triangle’s medium-length side a, and the triangle’s short side she named b.

“Of course,” she said, “the side of both designs is the same: a + b. If they weren’t the same, they couldn’t fit together to make the mosaic pattern.”

A Question of Area

Alex realized that if the two square designs have the same sides, then they have the same total area: {(a + b)}^{2} .

“And both designs have 4 triangles,” she explained to Leon. “Since the triangles are all the same, we can cancel those out.”

Leon said, “That means those two smaller squares must add up to the same area as the hippopotamus square, right?”

“That’s it!” Alex said. “The square on the hypotenuse is equal to the sum of the squares on the other two sides: {c}^{2} = {a}^{2} + {b}^{2} . These patterns prove the Pythagorean Theorem.”

A Question of Angle

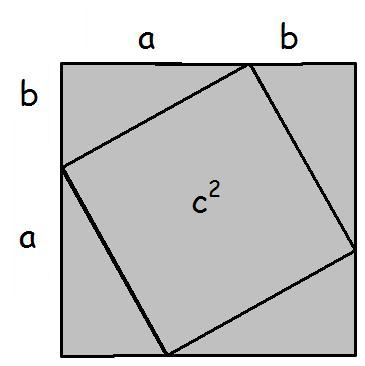

Leon frowned. “But how do you know that the tilted {c}^{2} is really a square?”

“Well, you can see that the sides are all the same length,” Alex said. “Each side is the hypotenuse of one of the triangles.”

“But couldn’t it be a rhombus?” Leon asked. “Can you prove for sure that the sides meet at right angles?”

Alex pointed to the side of the second mosaic pattern, where two points of a triangle met. “Any straight line is 180 ^{\circ}  , so I know that \angle 1 + \angle 2 + \angle 3 = 180 ^{\circ}  . And since \angle 1 and \angle 2 are the two non-right angles of a right triangle, they have to add up to 90 ^{\circ}  . Therefore, \angle 3 has to be 90 ^{\circ}  , too — a right angle. The shape has to be a square.”

To Be Continued…

Read all the posts from the May/June 1999 issue of my Mathematical Adventures of Alexandria Jones newsletter.


Free-Learning-Guide-Booklets2Claim your two free learning guide booklets, and be one of the first to hear about new books, revisions, and sales or other promotions.


3 thoughts on “The Pythagorean Proof

  1. I know I don’t have to thank you, but thank you, anyway, for including the discussion of angle.

    I can’t tell you how many people (I think) leave it out…

    Jonathan

  2. That is something my high school geometry teacher drilled into us over and over again: Never trust the drawing! It doesn’t matter whether it looks like a right angle, it only matters whether you can prove it’s right.

  3. I love the dialog approch to that, and as the other people say it is good you included the discussion of the angles.
